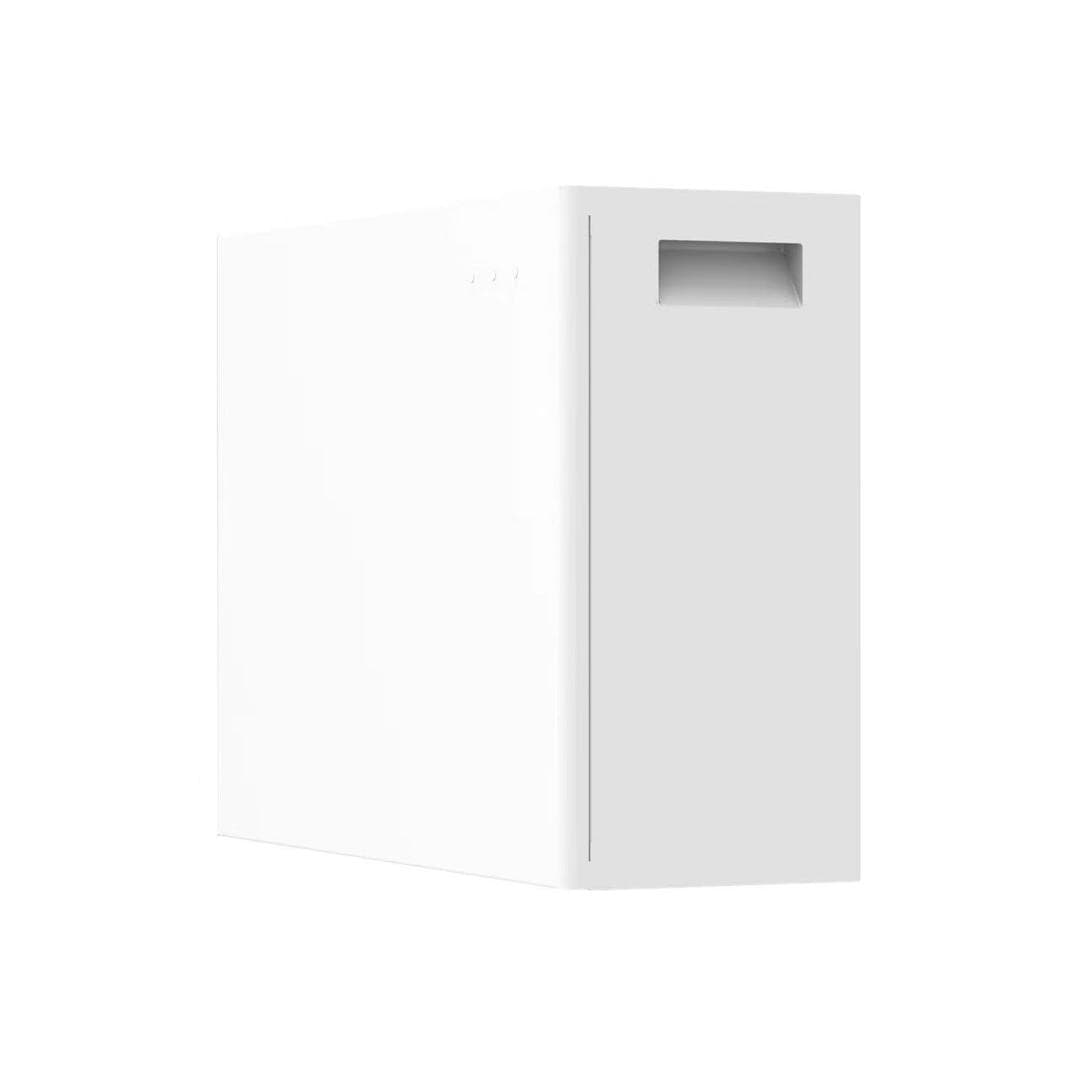

Neovolt LFP Master Battery 14 kWh (BW-BAT-14S-H)
Main battery module with built-in battery management (BMS) and heating function — the heart of the Neovolt three-phase storage system.
Key Features
- 14.06 kWh capacity (13.79 kWh usable)
- Built-in heating for cold climates
- 98% Depth of Discharge (DoD)
- Expandable up to 56 kWh with slave batteries
- 8000+ cycle lifespan, 10-year warranty
Technical Specifications
Battery Specifications
- Capacity: 14.06 kWh (13.79 kWh usable)
- Technology: LiFePO4 Lithium Iron Phosphate
- Voltage: 350V DC Nominal
- Cycle Life: 8000 cycles
Performance and Safety
- Depth of Discharge (DoD): 98%
- Operating Temperature: -20°C to 50°C
- Protection Rating: IP66
- Certifications: CE, UN38.3
Smart Features
- BMS: Advanced Battery Management
- Monitoring: Mobile App Control
- Integration: Hybrid Inverter Compatible
- Expandable: Modular Design
Applications
Residential Energy Storage
Ideally suited for homes wanting to store solar energy, reduce electricity bills, and ensure backup power during outages.
Off-Grid Systems
Perfect for remote locations and off-grid installations where reliable energy storage is essential for daily operations.
Commercial Energy Management
Suitable for businesses wanting to optimize energy costs through peak shaving and load redistribution.
Backup Power Systems
Provides reliable backup power for critical applications, ensuring continuous operation during grid failures.
